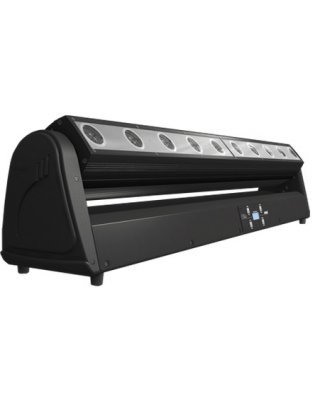

All the amazing features and performance of the award winning Robe LEDWash luminaires in a 1000 mm moving linear strip.
An array of individually controlled 15W RGBW LED modules equally spaced along the strip with fully adjustable zoom from 8-53 degrees. The strip itself has a very fast 270 degree tilt movement which can be precision indexed or programmed to produce rapid sweeping movements.
Pre-programmed colour macros and pixel control makes this fixture quick and easy to programme. Tungsten lamp emulation and fade effects at 2700 K and 3200 K are included. Wireless technology CRMX is available as an option.
Source
Light Source: Array of 15W RGBW LED multichips
Led Life Expectancy: minimum 60.000 hours
Typical Lumen Maintenance: 70% @ 60.000 hours
Optical System and effects
High efficient component optics
Linear motorized zoom 8° – 53°
RGBW colour mixing
Individual control of each RGBW pixel
CTO filter
Virtual colour wheel with pre-programmed 237 colours including whites (2700 K, 3200 K, 4200 K, 5600 K and 8000 K)
Tungsten lamp effect at whites 2700 K and 3200 K (red shift and thermal delay during dimming)
Colour rainbow effect with variable speed
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and directions
High resolution dimmer 0–100%
Strobe effect with variable speed (max.20 flashes per second)
Pre-programmed random strobe & pulse effects
Electrical Specification
Power supply: Electronic auto-ranging
Input voltage range: 100–240 V, 50/60 Hz
Power consumption: 170 W at 230 V / 50 Hz
cETLus pending approval
CE pending approval
Mechanical Specification
Height: 236 mm (9.3") – head in vertical position
Width: 1035 mm (40.7")
Depth: 182 mm (7.2")
Weight: 13.6 kg (28.7 lbs)
Thermal Specification
Maximum ambient temperature: 45 °C (104 °F)
Maximum surface temperature: 100 °C (212 °F)
Control and Programming
Setting & Addressing: two-row LCD display & 4 control buttons
Protocols: USITT DMX-512, RDM
Optional wireless version available: CRMX™ technology from Lumen Radio)
Control channels: 14, 21, 51,61
4 DMX protocol modes, including SunStrip emulation mode (halogen strip)
3-editable programs, each up to 100 steps
Stand-alone operation
Tilt resolution: 8 or 16 bit
Zoom: 8 or 16bit
R,G,B,W colours: 8 or 16 bit
Dimmer: 8 or 16bit
Data in/out: Locking 3-pin & 5-pin XLR
Power in/out: Neutrik PowerCon
Built-in analyser for easy fault finding
Electromechanical Effects
Motorized zoom
Tilt movement range: 270°
Rigging
Mounting points: 3 pairs of ¼-turn locks
2 x Omega bracket with ¼-turn quick locks
2 x safety attachment point
