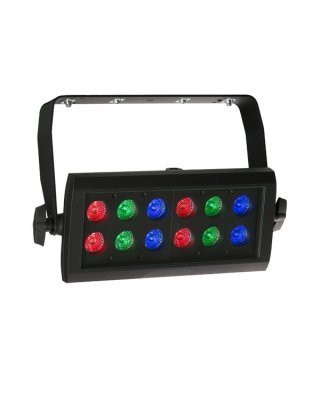

Robin CycPix 12

Robin CycPix 12

Producent:

ROBE Lighting



This uniquely designed, easy to install wash fixture combines a fast motorized zoom (8 degrees – 66 degrees), an optical system of highly efficient components and an array of twelve powerful 15 W RGBW multichip LEDS.
Combination of the tight 8 degrees beam together with individual pixel create outstanding visual effects.
Both RGBW colour mixing for complete array and individual pixel control offers an extensive range of colours – from pastel to saturation, including pre-calibrated chromatics of whites, variable CTO, Tungsten effects, fast power blinding strobe and smooth dimming. Manual tilt settings provide adjustment from -50 degrees to +90 degrees.

This uniquely designed, easy to install wash fixture combines a fast motorized zoom (8 degrees – 66 degrees), an optical system of highly efficient components and an array of twelve powerful 15 W RGBW multichip LEDS.
Combination of the tight 8 degrees beam together with individual pixel create outstanding visual effects.
Both RGBW colour mixing for complete array and individual pixel control offers an extensive range of colours – from pastel to saturation, including pre-calibrated chromatics of whites, variable CTO, Tungsten effects, fast power blinding strobe and smooth dimming. Manual tilt settings provide adjustment from -50 degrees to +90 degrees.

Source

  • Light Source: 12x 15W RGBW LED multichips
  • Led Life Expectancy: minimum 60.000 hours
  • Typical Lumen Maintenance: 70% @ 60.000 hours
  • LED colour variants: RGBW

Optical System and Effects

  • High efficient component optics
  • Linear motorized zoom: 8°– 66°
  • RGBW or CMY colour mixing
  • Individual control of each RGBW pixel: Yes
  • CTO filter: 0– 100%
  • Virtual colour wheel: With 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
  • Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay during dimming)
  • Colour rainbow effect with variable speed
  • Pre-programmed effects: Pixel effects with colour chases, waves and pulses at variable speed and directions
  • High resolution dimmer 0–100%
  • Strobe: Variable speed, max. 20 flashes per second
  • Preprogramed: Random strobe & pulse effects

Electromechanical Specification

  • Zoom: Motorized
  • Tilt movement range: Manual adjustment

Control and Programming

  • Setting & Addressing: Two-row LCD display & 4 control buttons
  • Protocols: USITT DMX-512, RDM
  • Wireless version: CRMX™ technology from Lumen Radio included
  • Control channels: 18, 12, 54, 66
  • Protocol Modes: 4 DMX, including SunStrip emulation mode (halogen strip)
  • Programs: one editable program, up to 40 steps
  • Stand-alone operation: Yes
  • Zoom: 8 or 16bit
  • R,G,B,W colours: 8 or 16 bit
  • Dimmer: 8 or 16bit
  • Data in/out: Locking 5-pin XLR
  • Power in/out: Neutrik PowerCon
  • Built-in analyser for easy fault finding

Thermal Specification

  • Maximum ambient temperature: 45 °C (104 °F)
  • Maximum surface temperature: 70 °C (158 °F)

Electrical Specification

  • Power supply: Electronic auto-ranging
  • Input voltage range: 100–240 V, 50/60 Hz
  • Power consumption: 200 W at 230 V / 50 Hz
  • Compliance: cETLus, CE

Mechanical Specification

  • Height: 341 mm (13.4")
  • Width: 521 mm (20.5")
  • Depth: 212 mm (8.3")
  • Weight: 12.2 kg (26.9 lbs)
  • LED module "tilt" adjustment range: -50/+90°

Rigging

  • Via Omega clamp (Floor stand included)
