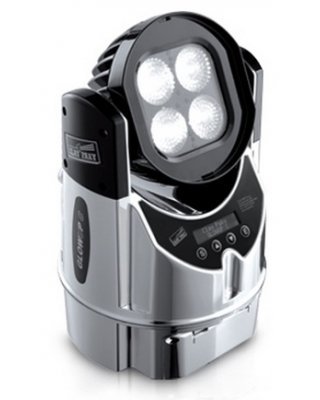

GlowUp is a portable, battery-powered luminaire that removes the logistical headache of running cables at events – dramatically reducing set-up time, while saving money and improving safety.
Based on durable, high-power LEDs, GlowUp offers years of energy-efficient service. Power is stored in a rechargeable lithium battery, a tried and tested technology found in many portable consumer devices such as mobile phones. The battery is lightweight making the fixture easy to carry and can be recharged 2000 times without suffering from ‘memory’ or capacity loss.
GlowUp is fully programmable allowing users to select scenes from a library containing dozens of suggested colors as well as a number of pre-programmed, color-changing sequences.
The battery eliminates the need for mains power, and each fixture can be programmed without needing to use cables. Each fixture has a wireless onboard data receiver, so several fixtures can be synchronized at once wirelessly. For those that prefer, GlowUp can also be cable-connected to the grid and programmed using standard DMX cables.
3 GlowUp versions are available: GLOW-UP “C” (RGBW); GLOW-UP “TW” (Tuneable White); GLOW-UP “W” (White). Body colors available: chromed-plated, white, black.
POWER SUPPLIES
External power: full range 100-240V 50-60Hz, PowerCon connector, for both battery charge and normal operation
INPUT POWER
50W max - 170 VA
LAMP SOURCE
4x10W MC-E Cree leds
Led pilot power: 40W
LED color temperature
5700 K GlowUP C
6000 K GlowUP W
6200 K cool white GlowUp TW
2700 K warm white GlowUp TW
4200 K cool+warm white GlowUp TW
OPTICS
Optic zoom, manually adjustable, magnetic support for any additional diffusers
COLOR SYSTEM
GlowUp C:
RGBW System
Macro Color (80 static colors; 80 color-changing sequences)
EFFECTS SECTION
Dimmer
Stop/Strobe
Macro Fading
CONTROL AND PROGRAMMING
GlowUp C: 7 DMX 512 control channels
GlowUp TW: 3 DMX 512 control channels
GlowUp W: 2 DMX 512 control channels
Wireless DMX multimode: Master, Slave and Reapeter
Antenna built in the case IP65
Master: can transmit other slaves the synchronised DMX scenes saved on it, both as macros and as DMX recorder.
Repeater: Receives the signal from the master and re-transmits it to other Slaves hidden from the master
XLR 5-pole DMX-in DMX-out standard sockets
Remote wireless board settings with PC
Default macros, user programmable macros.
DMX recorder to save scene sequences.
User interface: LCD display 2 lines with 16 characters each, backlit LED, white on black; 4 membrane buttons
BODY
IP65 protection rating
Injection pressed ABS case (UV protected)
Finish: Polished metallic – Painted White or Black
carrier handle
4 non-slip rubber feet
Head Adjustment: +/- 105°
Fittings: 2 fast-look holes for omega hook-up
SAFETY DEVICES
Safety chain hole and padlock hole
Cooling: High efficiency external die-cast aluminium
WORKING POSITION
Works in any position
CE MARKING
In conformity with European Union Low Voltage Directive 2006/95/CE and Electromagnetic compatibility directive 2004/108/CE
WEIGHT
7.5 Kg (16.5 lbs)
