22 648 04 07

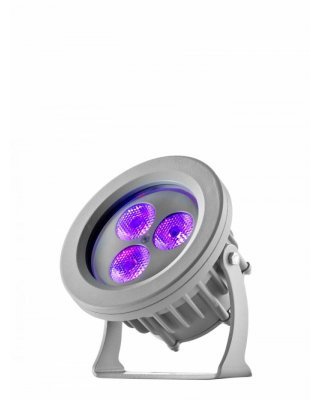

Featuring a totally brand new design, MICRO-CLIP MK2 is an ultra compact spotlight fixture that houses three high efficiency full colour LEDs. IP65 rated, MICRO-CLIP MK2 is adaptable to a wide range of indoor and outdoor environments. Providing a vibrant and brilliant colour palette from a particularly thin and newly restyled bodywork, MICRO-CLIP MK2 features a straightforward operational efficiency where standalone colour sequences are available for spectacular synchronized effects and digital remote control via DMX 512 signal is a standard attribute. Wall-washing, spot lighting, interior and exterior decoration are part of a vast choice of applications assortment enhanced by multiple beam angles options and full orientation pan and tilt mounting position.
SOURCE
3 high brightness RGB full-colour LEDs unit
Continuously variable light intensity
1-100% electronic dimming facility
No UV / no infrared
Virtually instant light production (100 ns)
Strobe facility (12 fps)
SOURCE LIFE
The LED light sources used have an exceptionally long life: predicted 50,000 hours under normal operating conditions as mentioned by the LED manufacturer.
OPTICS
Narrow, medium and wide photometric distribution lenses
COLOUR VARIETY
RGB full colour additive colour mixing for countless attractive saturated colours
Theoretical variety of infinite colour hues
DIGITAL CONTROL
On-board Dip Switch set for digital data assignment and standalone operation control
Pre-set selectable colour sequences and blends
Master-Slave mode
4 channels of DMX 512 standard protocol
Input and output DMX signal connectors
IP65 optional universal DMX controller (ordering code AD4126)
Programming software with USB compatible download IP65 box (ordering code AD4118)
Enhanced programming software with ETHERNET compatible download box (IP65 AD4119 or IP20 AD4125)
LED D.O.P. Controller MK2 (ordering code AL1422)
Wall-TSC (ordering code AL1424)
New wireless DMX control system (AL3360/ AL3362/ AL3364/ AL3366)
ELECTRICAL SPECIFICATIONS
Power supply:
standard 200÷220 / 230÷250 / 50-60Hz
optional 90÷120V / 50-60Hz
Power Consumption:
10.8W per unit
Electrical Class: III
Power supply unit featuring a self-resetting fuse protection
Meets CE safety standards
HOUSING
Aluminium for both projector and separate transformer box (powering up to 4 units)
External IP65 DMX LED driver AL1861 powering up to 4 units, even independently (90÷250V)
Full 360° orientation capability with adjustable bracket for surface mounting
IP65 protection rating
EXTERNAL OPERATING LIMITS
-20°C to 40°C
(-4°F to 104°F)
WEIGHT
0.65 Kg
PACKING SIZE
Packing size for 1 unit:
Volume: 0.022 m3
Weight: 2 Kg
Size: L35 x W28 x H22 cm
Boxes: 1 cardboard box
