22 648 04 07

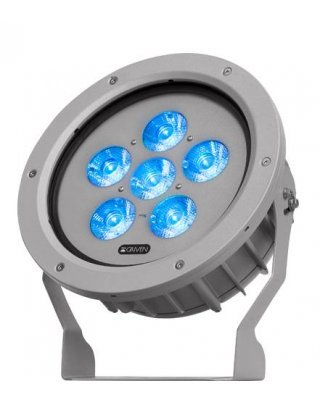

RUBY MC RGBW is a newly engineered, medium-sized rounded spotlight which houses six high power RGBW full colour LEDs, as well as in-built electronics and power supply unit. This stylish and versatile fixture is ideal for spot lighting and wall grazing owing to the wide selection of exchangeable optics groups available, ranging from spot aperture beams to wide distribution. The combination of RGBW LEDs provides an unprecedented astonishing white light output quality, as well as a wider variety of intermediate colour hues for an even broader range of application purposes.
SOURCE
6 high brightness RGBW full-colour power LEDs unit
Continuously variable light intensity
1-100% electronic dimming facility
No UV / no infrared
Virtually instant light production (100 ns)
Strobe facility (25 fps)
SOURCE LIFE
The LEDs used have an exceptionally long life: predicted 50,000 hours under normal operating conditions as mentioned by the LED manufacturer.
OPTICS
Spot, narrow, medium and wide photometric distribution lenses
COLOUR VARIETY
RGBW additive colour mixing for countless attractive saturated colours
Theoretical variety of infinite colour hues
DIGITAL CONTROL SYSTEM
DMX, automatic and Master-Slave mode
Remote firmware update (RFU)
RDM function
4/5/6 channels of DMX 512 standard protocol
Infrared remote control (AL1321)
IP65 universal DMX controller MK2 (ordering code AD4126)
Programming software with USB compatible download IP65 box (ordering code AD4118)
Enhanced programming software with ETHERNET compatible download IP65 box (ordering code AD4119) or IP20 box (ordering code AD4125)
LED D.O.P. Controller MK2 (ordering code AL1422)
Wall-TSC (ordering code Al1424)
WeeZerd 1 (ordering code AL2660)
Wireless DMX control system (AL3360/ AL3362/ AL3364/ AL3366)
ELECTRICAL SPECIFICATIONS
Power supply:
standard 90÷250 / 50-60Hz
Power consumption:
0.26A @ 230V / 58W max
Electrical class: I
Self-resetting fuse protection
Meets CE safety standards
HOUSING
Aluminium body
Scratch resistant polyester grey paint
Easy mounting system for wall, ceiling and floor with full 360° orientation capability
IP66 protection rating
EXTERNAL OPERATING LIMITS
-40°C to 50°C
(-40°F to 122°F)
Integrated electronic thermal protection management
WEIGHT
3.9 Kg
