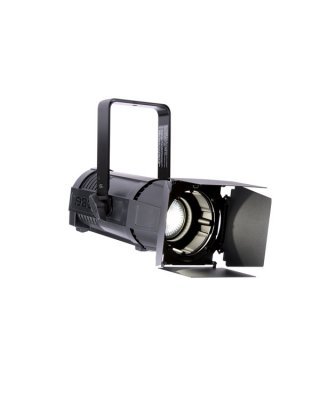

ParFect H1

ParFect H1

Producent:

ROBE Lighting



A direct replacement for a traditional phase-dimmed line voltage luminaire. Internal electronics enable this powerful single source LED unit to be controlled and dimmed through the power supply from existing dimmers without modification.
Available in different colour temperatures to suit the application – a crisp 6000K white for exhibition/display or a warm 2700K for stage performance both with a native 23° output, make it universally appealing.
Designed and built entirely at our Czech facility in a lightweight composite material finished in either black or white. Supplied complete with gel frame, detachable barn door set and swivel floor stand/hanging bracket. Very competitively priced and offered with a full compliment of additional cost options including: beam diffusers and plug-in wireless DMX module.

A direct replacement for a traditional phase-dimmed line voltage luminaire. Internal electronics enable this powerful single source LED unit to be controlled and dimmed through the power supply from existing dimmers without modification.
Available in different colour temperatures to suit the application – a crisp 6000K white for exhibition/display or a warm 2700K for stage performance both with a native 23° output, make it universally appealing.
Designed and built entirely at our Czech facility in a lightweight composite material finished in either black or white. Supplied complete with gel frame, detachable barn door set and swivel floor stand/hanging bracket. Very competitively priced and offered with a full compliment of additional cost options including: beam diffusers and plug-in wireless DMX module.

Source

  • Light Source Type: 1x 140 W COB LED
  • LED Life Expectancy: Minimum 60.000 hours
  • Typical Lumen Maintenance: 70 % @ 60.000 hours

Optical System and Effects

  • Beam Angle: 23°; optional diffusers available
  • CCT: 2.700 K or 6.000 K
  • Dimming: Electronic or External Dimmer Rack
  • Stobe effect: Eletronic with variable speed (max. 20 flashes per second), pre-programmed random strobe & pulse effects

Control and Programming

  • Setting & Addressing: 2-row LCD display & 4 buttons
  • Protocols: USITT DMX 512, RDM, Traditional Dimmer Pack
  • Optional wireless version: CRMX™ technology from Lumen Radio (on request)
  • Control Channels: 1, 2, 3
  • Protocol Modes: 3
  • Programs: 1 user-editable program up to 40 steps
  • Stand alone operation
  • Data in/out: Locking 5-pin XLR

Thermal Specification

  • Maximum Ambient Temperature: 40° C (104° F)
  • Maximum Housing Temperature: 80° C (176°C)

Electrical Specification

  • Input Voltage: Supply 100-240V, 50-60Hz
  • Power Consumption: Max. 150W
  • Power Connector: Neutrik PowerCon In/Out
  • Standard Compliance: CE; cETLus

Mechanical Specification

  • Length: 490 mm (19.3") including barn-doors
  • Width: 240 mm (9.5") x 173 mm (6.8")
  • Weight: 5,5 kg (12.1 lbs)

Rigging

  • Mounting Points: Mounting horizontally or vertically via mounting yoke (360° tilt range)

Accessories

  • Optional: Diffusion filters 10°, 20°, 40°, wireless DMX module
