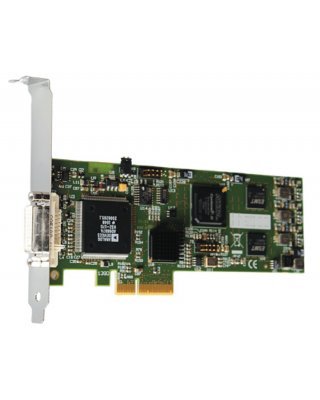

The VisionRGB-E1S has a single capture channel supporting up to 1920x1080 DVI or 2048x1536 Analog resolution.
The VisionRGB-E1S captures the Analog/DVI data and triple buffers it into onboard storage. This data is then copied using DMA to the host system for display, storage or streaming.
When a Datapath graphics card is used, the VisionRGB-E1S transfers the data directly to the graphics card thereby increasing performance. The VisionRGB-E1S sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data. This fully utilises the hardware and dramatically increases performance.
| Board format |
PCI Express x4 low profile card, 68.9mm x 167.6mm
PCI Express bus master with scatter gather DMA providing
Maximum data rate of 650MB/s
|
| Connectors | One DVI-I type connector |
| Maximum sample rate |
170Mpixels per second analog RGB or 165 MHz DVI
Analog modes up to 340MHz pixel clock can be captured using dual-pass sampling
|
| Video sampling | RGB: 24bits per pixel/ 8-8-8 format |
| Video capture memory | 32MB, triple buffered |
| Analog RGB mode support | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536, custom modes |
| DVI single link mode support | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1500 x 1200, 1920 x 1080, 1920 x 1200, custom modes |
| HD modes | 1080p, 1080i, 720p, 576p, 576i, 480p and 480i using a Component-DVI connector (HDCP not supported) |
| Input mode detection | Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal |
| Pixel transfer formats |
RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/32bit) pixels
YUV: 4:2:2
MONO: 8bits
|
| Update rate |
User defined, captured frame rate will match the source. Providing max data rate (650MB/s) is not exceeded
Multi-buffered to eliminate tearing artifacts
|
| Video format options |
Analog RGB plus HSync and VSync (5 wire)
Analog RGB with Composite Sync (4 wire)
Analog RGB with Sync on Green/ YPbPr (3 wire)
DVI Single Link
|
| Operating system support | Windows® XP, Windows® Vista, Windows® Server 2003, Windows® Server 2008 and Windows® 7 |
| Power requirements |
Max current at +3.3V - 0.25A
Max current at +12V - 0.5A
Max power - 6.8 Watts
|
| Operating temperature | 0 to 35 deg C/ 32 to 96 deg F |
| Storage temperature | -20 to 70 deg C/ -4 to 158 deg F |
| Relative humidity | 5% to 90% non-condensing |
