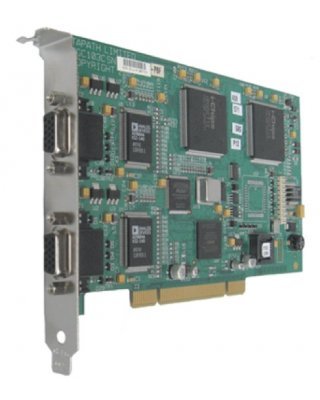

A stand alone PCI plug in card, the VisionRGB-PRO2 captures the display output (e.g. the analogue RGB data) from one source and then displays it as an independent application, on your Windows® desktop. The VisionRGB-PRO2 video capture cards have 2 VGA compatible inputs for simultaneously feeding 2 independent data sources directly into your main PC.
The data is then converted on the VisionRGB-PRO2 and displayed as a standard Windows® application on your desktop. All your data in one place and no need for that dedicated monitor.
| Board format |
PCI level 2.1 complaint, half sizing plug-in card 105mm x 170mm
PCI bus master with scatter/ gather DMA providng up to 132 MBytes per second data transfer
|
| Connectors | Two VGA D Type connectors |
| Maximum sample rate | 280m pixels per second |
| Video sampling | 24 bits per pixel/ 8:8:8 format |
| Video capture memory | 6MB per channel (updated in real time) |
| RGB mode support | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200 |
| Pixel display formats | 555, 565 or 888 pixels |
| Update rate | User defined, typically up to 30 updates per second |
| Video format option |
RGB plus HSync and VSync (5 wire)
RGB with Sync on green (3 wire)
RGB with composite Sync (4 wire)o
|
| Operating system support | Windows®7 (x86 & x64), Vista (x86 & x64), Windows®2000, Windows® Server 2003 and Windows® XP Professional |
| Power requirements |
Max current at 12V - 0.20A
Max current at +5V - 1.30A
Max current -9.40watts
|
| Operating temperature | 0 - 35 deg C |
| Storage temperature | -20 - 70 deg C |
| Relative humidity | 5% to 90% non-condensing |
