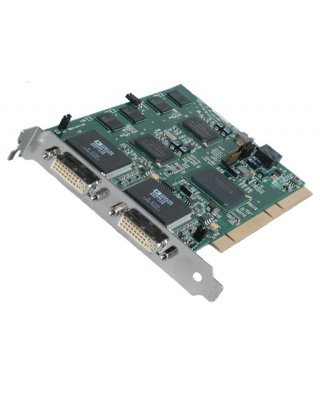

| Board format | 64 bit, up to 133MHz PCI-X, half size plug-in card 105mm x 170mm, PCI bus master with scatter/ gather gather DMA providing up to 1GB/ sec peak, 500MB/ sec sustained |
| Connectors | 2 DVI-I type connectors |
| Maximum sample rate | 170 Mpixels per second RGB or 165MHz DVI |
| Video sampling | RGB: 24bits per pixel/ 8-8-8 format |
| Video capture memory | 32MB per channel (updated in real time), triple buffered |
| Analog RGB mode support | 640 x 480, 800 x 600, 1024x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536 custom modes |
| DVI single link mode support | 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200 and custom modes |
| Input mode detection |
Automatic detection of input modes in hardware enabling the tracking of mode changes in the source signal |
| HD modes |
1080p, 1080i, 720p, 567p, 480p and 480i using a component HD-DVI connector (HDCP not supported) |
| Pixel transfer formats |
RGB: 555, 565 or 888 pixels, 8 bit monochrome
YUV: 4:2:2, UYVY, YUY2, YVYU
|
| Update rate |
User defined, typically up to 60 frames per second, limited by available bandwidth.
Triple buffered to eliminate tearing artifacts
|
| Video format options |
Analog RGB plus HSync and VSync (5 wire)
Analog RGB with composite sync (4 wire)
Analog RGB with Sync on green (3 wire)
DVI single link
|
| Operating system support | Windows® XP Professional (x86 and x64), Windows® Server 2003 (x86 and x64), Windows Vista® (x84 and x64), Windows® Server 2008 (x86 and x64) and Windows®7 |
| Power requirements |
Max current at +3.3V - 0.5A
Max current at +5V-1.7A
Max power - 10 watts
|
| Operating temperature | 0 to 35 deg C |
| Storage temperature | -20 to 70 deg C |
| Relative humidity | 5% to 90% non-condensing |
| Analog input range | Min 0.5Vpp, Max 1.0Vpp |
| Input offset | +/- 2V |
| Hsync | 15kHz - 110kHz |
| Vsync | No hardware limits, typically 25Hz - 200Hz for real signals |
| Seperate sync polarity | Postive or negative (seperate H&V sync, composite sync) |
| Sync on green polarity | Negative |
| Inputs | 75Ohm terminated |
