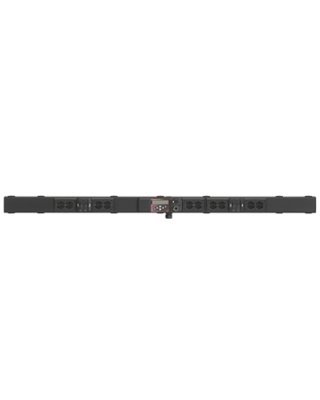

SmartBar 2 gives you next-generation dimming for portable or permanent installations... without busting your budget. It provides an integrated dimming and fixture-mounting solution for compact, low-power applications, such as rentals, industrials or even small touring productions.
Set up your system in minutes and light like a pro – just plug in and play anytime, anywhere. Schools, houses of worship, community theaters and outdoor events will benefit from SmartBar 2’s easy setup. No ladder necessary!
SmartBar 2 is fully digital, with operational and programming features similar to SmartPack® – sequences (chases), choice of dimmer curves – as well as many new features. And the console is optional thanks to SmartBar 2’s chases and local control, but pair it with a SmartFade® lighting control console and you have the perfect production combination!
Available with more power! A SmartBar 2 high-power option is available to handle twice the fixtures on a four-circuit bar!
Product Features
- Convection cooled
- Fixture mount
- Easy focus
- Top- or bottom-feed
- Up to 1200W max per output
- Easy reset
- RDM-enabled
- DMX512A with RDM remote addressing
- Graphic level display
- Quick setup menus
- Button shortcut for manual control
- User-selectable dimmer curves
- 20 chases (preprogrammed sequences)
GENERAL
• 2, 4 or 6 dimmer versions available
• 1200 watt max per channel output
• UL / cUL Listed
• Installation requires attachment of safety cables, main power
via flexible cable and data via DMX
MECHANICAL
• Manufactured of strong, thick walled aluminum with a black
baked powder-coat finish
• Integrated, sleeved suspension points for fixtures and for
mounting hardware
• Supplied with 4-1/2” long, 1/2” bolts and appropriate
hardware for fixture mounting
• Convection cooled - operates without cooling fans or filters
• Sealed enclosure prevents dirt and dust intrusion
ELECTRICAL
• 85-140V phase to neutral 47-63Hz
• Input power feed (top or bottom feed)- 20A max per phase
• 2 Circuit - Single phase 2-wire Plus ground
• 4 Circuit- Choice of power entry
- Single 12/3 SO cable for 120V hot/neutral/ground feed
- Single 12/4 SO cable for 120/240V single (bi/2) phase feeds
• 6 Circuit - Choice of power entry
- Single 10/5 SO cable for 120/208V three phase feeds
- Single 12/4 SO cable for 120/240V single (bi/2) phase feeds
• Input power via an attached flexible 12’ SO feed cord and
bare-ends (connector not supplied)
• 2500V isolation between control and power components
• Total load can not exceed capacity of main power connection
(wall outlet, 15A, 20A per phase)
• 75W minimum load per dimmer
• Dual Edison, Stage Pin or Twist-Lock outlets (1 per circuit)
• Single duplex auxiliary outlet centered on bar
• 10A magnetic supplemental circuit breaker for each output
THERMAL
• Maximum ambient temperature of 104°F (40° C)
• Humidity between 10 - 95% non-condensing
• Natural convection cooling
• Optimum cooling when mounted horizontally
CONTROL FEATURES
• DMX512 In and Thru via 5 Pin XLR connectors
• Supports up to 32 SmartBar 2s on one DMX line
• High contrast 2-line by 20-character backlit LCD with graphic
channel level indication
• 6-button Smart style keypad
• 2 status LED indicators: Power and Valid DMX
• Soft patch any dimmer to any DMX channel
• Five selectable dimmer output curves:
- IES modified square law
- Linear
- Switched (50% threshold)
- Fluorescent with adjustable cut-off
- Adjustable Pre-Heat
• Local manual control and 20 chase patterns for stand
alone operation
• Multi-Language capability - English, Spanish, German,
and French
