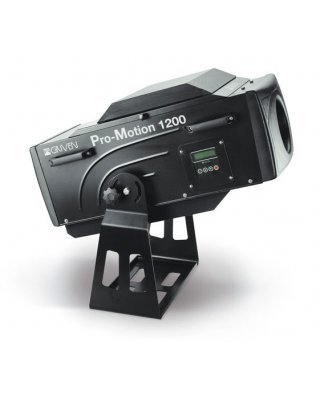

Pro-Motion 1200 is a totally weatherized versatile multiple format projector, designed for a wide variety of applications: from open air events through to large area projection shows, exhibition halls, television sets, marketing advertising, theme parks, as well as concerts and festivals. Its versatility is expanded by a dedicated range of effect modules and a selection of alternative optic groups which can be used separately or in conjunction with each others for various truly outstanding displays to meet the professional lighting designers requirements. Single gobo rotators, multiple rotating and indexable gobo changers or slide changers are adjustable in rotation speed and direction via standard 512 dmx signal. Slide changer modules can feature five 24X36mm slides as well as eight 6X7cm slides. Film scrollers up to 50 frames, can be used at variable speeds for spectacular image projection. Colour and distortion wheel rotators, beam shapers and scanning mirrors increase this amazingly wide list of effects. Using a powerful 1200W discharge lamp, this fully weatherproofed image projector, certified to an IP44 factor against ingress of dust and water, is suitable for both indoor and outdoor applications. Up to 7 DMX control channels are available for full remote control of multiple module set-ups giving a sophisticated projection show.
The lamp is sold separately.
Lamp Source
Type: MSR/HSD
Wattage (W): 1200
Base: G22
Lamp life (H): 1000/2000
Lumens: 110000
Colours
Dichro Filters: 2 wheels 24 colours + white
Projection
Angle: 10° - 30° Gobos/19° - 42° Slides
Focus: manual
Zoom: manual
Dimmer: mech. (optional)
Strobe: 9 Fps
Black Out
Glass Gobos: optional
Metal Gobos: 1
Gobos Ø (mm): D Size EXT 53,3-INT 40
Rotating Gobos: 5 (optional)
Slides (mm): n°5 24x36 mm slides-n°50 6x7 cm films
Operation
DMX Channels: 7
On-board control
Housing
Weather protection: IP44
Cooling: FV
Size
Width (mm): 475
Depth (mm): 780
Height (mm): 654
Weight Kg
Main Fixture: 53,5
Power
Input (V): 110 (Optional) Sep.ball. 230-240
Hz: 50-60
Amp: 8 @ 230V-18 @ 110V
