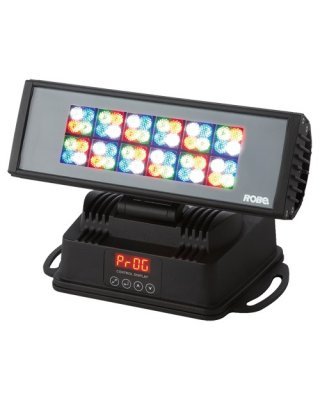

CitySkape 48 RGBW

Electrical Specifications

• Power supply: Electronic auto-ranging

• Input voltage range: 100–240 V AC, 50–60 Hz

Power consumption:

• High power mode: 60 W

• Eco mode: 40 W

Enviroment Specification

• Maximum ambient temperature: 40 °C

• Maximum housing temperature: 80 °C

Optic & Effect specification

• Light source: 48 high power RGBW Luxeon Rebel LEDs

• Standard optical system: 12° beam angle and eggcrate lens module 25°, bandoors included

• LED life expectancy (according to B10L70 criterion): 60,000 hrs (Eco mode), 15,000 hrs (High power mode)

• RGBW colour mixing

• Built-in colour macros

• Adjustable strobe sequences

• White colour balance adjusting

• Pre-programmed random strobe pulse-effects

Connection

• DMX data IN: 1.3 m long cabel with 5-pin Indoor XLR (male)

• DMX data OUT: 1.3 m long cabel with 5-pin Indoor XLR (female)

• Power: 1.4 m long power cabel without plug

Control and Programming

• Control panel: 4-digit LED display and four control buttons

• Control: USITT DMX 512 (RDM support)

• DMX protocol modes: 4 (2, 3, 4, 8 control channels)

• Operations modes: DMX, Stand-alone, Master/Slave

• Manual control of all effects via control panel

• 3 user editable programs each up to 68 steps

• Smooth 16-bit dimming from 0–100 %

• Optional wireless version available: CRMX™ technology from Lumen Radio

Rigging

• Omega clamp + adapter for Omega clamp

Optional Accessories

• Eggcrate lens module 45°

• Eggcrate lens module 45°x15°

• Eggcrate top hat module (without lenses)

• Quad Top-loader case (without castors)

• Octuple Top–loader case

Mechanical Specification

• Height: 173 mm (6.8")

• Width: 243 mm (9.6")

• Depth: 172 mm (6.8")

• Head position adjustment range: 145°

• Weight: 3 kg (6.6 lbs)

• Protection factor: IP 65

Approvals

• cETLus pending approval

• CE
