22 648 04 07

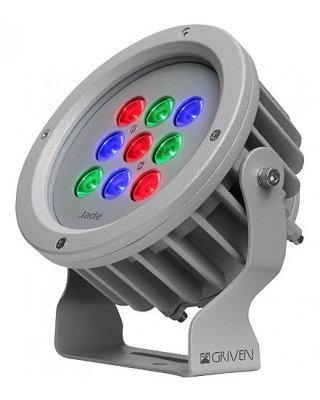

JADE 9 RGB is a newly engineered rounded spotlight which houses nine high power RGB LEDs, as well as in-built electronics and power supply unit. Providing a vibrant and brilliant colour palette from such a compact chassis, JADE 9 RGB features functional efficiency whereas spectacularly dynamic lighting performance is assured by digital control of all functions, either onboard for standalone operation, with Master-Slave selectable for multiple unit synchronization, or from external DMX512 controller. All functions must however be addressed either via the optional Infrared Remote Control or Weezerd 1 multi-functional devices. The wide choice of exchangeable optics groups, ranging from spot aperture beams to elliptical wide distribution, and the full pan and tilt orientation adjustment further enhance JADE 9 RGB maximum flexibility for any surface mount application purpose.
SOURCE
9 high brightness, RGB power LEDs unit
Continuously variable light intensity
1-100% electronic dimming facility
No UV / no infrared
Virtually instant light production (100 ns)
Strobe facility (20 fps)
SOURCE LIFE
The LED light sources used have an exceptionally long life: predicted 50,000 hours under normal operating conditions as mentioned by the LED manufacturer.
OPTICS
Spot, narrow, medium, wide, extra wide, elliptical and elliptical wide photometric distribution lenses
COLOUR VARIETY
RGB additive colour mixing for countless attractive saturated colours
Theoretical variety of infinite colour hues
DIGITAL CONTROL
Master and Slave
3-4-5 channels of DMX 512 standard protocol
Infrared remote control (AL1321)
IP65 optional universal DMX controller (ordering code AD4126)
Programming software with USB compatible download IP65 box (ordering code AD4118)
Enhanced programming software with ETHERNET compatible download box (IP65 AD4119 or IP20 AD4125)
LED D.O.P. Controller MK2 (ordering code AL1422)
WALL-TSC (ordering code AL1424)
WeeZerd 1 (ordering code AL2660)
New wireless DMX control system (AL3360/ AL3362/ AL3364/ AL3366)
ELECTRICAL SPECIFICATIONS
Power supply:
standard 90÷250V 50-60Hz
Power consumption:
0.2A@230V / 23W max
Electrical class: I
Self-resetting fuse protection
Meets CE safety standards
HOUSING
Aluminium body
Scratch resistant polyester grey paint
Easy mounting system for wall, ceiling and floor with full 360° orientation capability
IP66 protection rating
EXTERNAL OPERATING LIMITS
-40°C to 50°C
(-40°F to 122°F)
Integrated electronic thermal protection management
WEIGHT
2 Kg
PACKING SIZE
Volume: 0.022 m3
Weight: 2.8 Kg
Size: L35 x W28 x H22 cm
