22 648 04 07

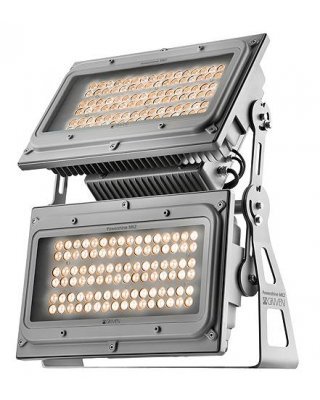

POWERSHINE MK2 D EASY, unquestionably granting the same extraordinary light output performance and robustness of the world renowned Powershine series, comes with 192 powerful LEDs featuring both cold and warm white colour temperature, as well as a wide choice of monochromatic tones. Specific for budget restraint projects where DMX, colour changing and dimming options are not specified, POWERSHINE MK2 D EASY's cool or warm white LEDs set-up creates a stunning visual rendering of warm tones or cool shades, thus offering a broad range of application purposes. The factually silent operation guaranteed by the absence of any ventilation system, the IP66 protection degree and the flexibility assured by the vast optical selection featured, make POWERSHINE MK2 D EASY the premium choice for exterior architectural lighting designs calling for bright white light or single colour output as well as for large indoor noise-free applications.
SOURCE
192 high brightness white or monochrome power LEDs unit
No UV / No infrared
Virtually instant light production (10 ns)
SOURCE LIFE
The LED light sources used have an exceptionally long life: predicted 50,000 hours under normal operating conditions as mentioned by the LED manufacturer
OPTICS
Spot, narrow, medium, wide, extra wide, elliptical and elliptical wide photometric distribution lenses
LED COLOUR TEMPERATURE
Cold White 6300K CRI:75
Warm White 3000K CRI:80
Monochrome
LEDs featuring a higher index (CRI>80, CRI>85 and CRI>90) are available on request
ELECTRICAL SPECIFICATIONS
Power supply:
100÷277V / 50-60 Hz
Power consumption:
2.2A@230V / 479W
Electrical class: I
Self resetting fuse protection
Meets CE safety standards
HOUSING
Die cast aluminium body
Scratch resistant polyester grey finish, protected against UV deterioration and general corrosion
Easy mounting system for wall, ceiling and floor with full orientation capability
Fixing yoke included
IP66
EXTERNAL OPERATING LIMITS
-40°C to 50°C
(-40°F to 122°F)
Integrated electronic thermal protection management
WEIGHT
38 Kg
PACKING SIZE
Volume: 0.190 m3
Weight: 42 Kg
Size: L80 x W66 x H36 cm
