22 648 04 07

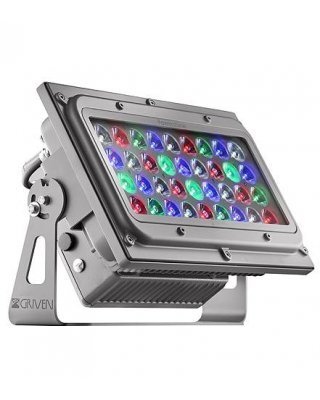

Much more than an alternative optics configuration, POWERSHINE S ULTRA SPOT RGBW, the newly engineered version available for this worldwide well-renowned powerful LED floodlight, features an incomparably functional, ultra-narrow, sharp, long-shot beam of light, that will allow for a new generation of advanced and previously unthinkable design developments for the vast plethora of those architectural projects demanding for impressive though sustainable lighting performance. POWERSHINE S RGBW ULTRA SPOT is fitted with a combination of 36 RGBW high brightness LEDs that provide an unprecedented astonishing white light output quality, as well as a wider variety of intermediate colour hues for an even broader range of application purposes. Maintenance costs are significantly reduced by the IP66 certified protection rating coupled with the notorious long life span of the latest solid state lighting package, as well as by the total absence of moving parts and by the convection cooling system for the added bonus of a totally silent operation. The Polar Edition features an integrated de-icing system with electrically heated glass, which assures a comfortable functioning even in the utmost severe cold weather conditions.
.png)
SOURCE
36 high brightness RGBW power LEDs
Continuously variable light intensity
1-100% electronic dimming facility
No UV / No infrared
Virtually instant light production (10 ns)
Strobe facility (20 fps)
SOURCE LIFE
The LED light sources used have an exceptionally long life: predicted 50,000 hours under normal operating conditions as mentioned by the LED manufacturer.
OPTICS
Ultra-narrow spot optics
LED COLOUR VARIETY
Red-Green-Blue-White
DIGITAL CONTROL
Remote firmware update (RFU)
RDM function
On-board control panel with display readout for digital data assignment and standalone operation control
Pre-set selectable colour sequences and blends
Master/slave function for multi-unit synchronisation
5 channels of DMX 512 protocol (RGBW standard version)
IP65 optional universal DMX controller (ordering code AD4126)
Programming software with USB compatible download IP65 box (ordering code AD4118)
Enhanced programming software with ETHERNET compatible download box (IP65 AD4119 or IP20 AD4125)
LED D.O.P. Controller MK2 (ordering code AL1422)
Wall-TSC (ordering code AL1424)
WeeZerd 1 (ordering code AL2660)
New wireless DMX control system (AL3360/ AL3362/ AL3364/ AL3366)
ELECTRICAL SPECIFICATIONS
Power supply:
1090÷277V / 50-60 Hz
Power consumption:
0.6A @ 230V / 115W
Self-resetting fuse protection
Electrical class: I
Meets CE safety standards
HOUSING
Die cast aluminium body
Scratch resistant polyester grey finish, protected against UV deterioration and general corrosion
Easy mounting system for wall, ceiling and floor with full orientation capability
Fixing yoke included
IP66 protection rating
EXTERNAL OPERATING LIMITS
-40°C to 50°C
(-40°F to 122°F)
Integrated electronic thermal protection management
The Polar Edition features an integrated de-icing system with electrically heated glass, which assures a comfortable functioning even in the utmost severe cold weather conditions.
WEIGHT
20 Kg
PACKING SIZE
Volume: 0.152 m3
Weight: 23 Kg
Size: L61 x W52 x H48 cm
Boxes: 1 cardboard box
