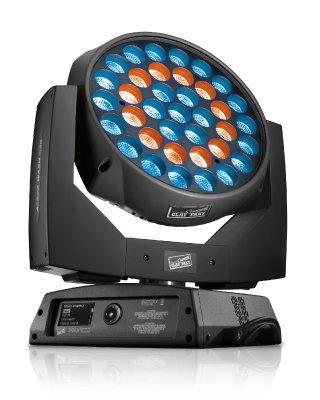

A.Ledaw Wash K20

C61410

A.LEDA WASH K.20 is the model at the top of the A.LEDA Series, the first professional Clay Paky fixtures to use LEDs as light sources. It offers a valid alternative to discharge lamp washlights, adding all the benefits of LED technology: low energy consumption, long light source life, small size, light weight and robustness.
A.Leda Wash K.20 is fitted with multicolor RGBW LEDs that produce a full range of vivid colors as well as excellent shades of white. It is also equipped with a motorised and fully controllable 14°-70°.
Each color of each LED may be controlled separately: this unique feature not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color.
To ease operation, the light has a library of pre-programmed graphic effects, which operators may customise by changing each parameter: intensity of each color, speed of change, etc.

Details
Accessories
Download
Multimedia

POWER SUPPLIES

100-240 V 50/60 Hz

INPUT POWER

Input: Powercon Neutrik

LAMP SOURCE

Light source: 37 x 15 W RGBW LEDs
Rated light output: 18,000 lumen
LED power consumption: 555 W
Total power consumption: 600 W

OPTICS

14°-70° electronic zoom (8°-55° at 50% of max illumination)

EFFECTS SECTION

0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Preset color and graphic effect macros
Dedicated channel for color temperature setting

CONTROL AND PROGRAMMING

DMX512: 5-pole and 3-pole XLR IN-OUT sockets
Control channels: 18 basic channels + 111 pixel-mapping channels

BODY

Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
PAN lock for transport and maintenance.

MOVING BODY

Angle:
- PAN = 540°
- TILT = 240°

ELECTRONICS

Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the
power supply
Firmware transfer from one light to another

SAFETY DEVICES

Automatic power safety derating in case of overheat of the LED board

WORKING POSITION

Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING

In conformity with the European Union Low Voltage Directive 2006/95/CE and Electromagnetic compatibility Directive 2004/108/CE.

WEIGHT

19 Kg (41.9 lbs)

Omega

OMEGA

STANDARD

code: 183102/805

for fixing clamps

Clamps

CLAMPS

OPTIONAL

code: C21070

48-51mm, max 300 Kg hook for truss

Safety cable

SAFETY CABLE

OPTIONAL

code: 105041/003

Ø 4mm, lenght 680mm safety cable

Transparent front mask

TRANSPARENT FRONT MASK

OPTIONAL

code: C61457

Transparent front cover

TRANSPARENT FRONT COVER

OPTIONAL

code: C61458

Frosted front cover

FROSTED FRONT COVER

OPTIONAL

code: C61459

Foam Shell

FOAM SHELL

OPTIONAL

code: F21227

Roxter Case

ROXTER CASE

OPTIONAL

code: F21242

Roxter-Case for 2 A.leda Wash K20 (2 foam shells included)

IGLOO

OPTIONAL

code: C61195 (with Wireless DMX receiver/transmitter) - C61198 (EASY version with no W-DMX)
